Material: Carbon steel
Finish: powder coated red, galvanized

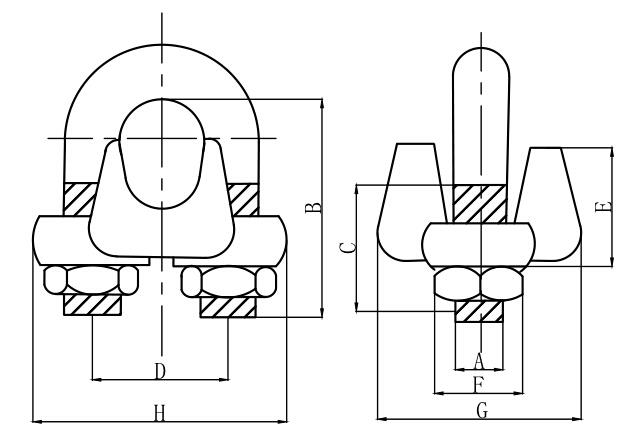

| Rope Size | Dimensions (mm) |
Weight per 100 pcs (kg) |
||||||||
| in | mm | A | B | C | D | E | F | G | H | |
| 1/8 | 3-4 | 5.6 | 18.3 | 11.2 | 11.9 | 10.4 | 9.65 | 20.6 | 23.9 | 2.72 |
| 3/16 | 5 | 6.35 | 24.6 | 14.2 | 15 | 12.7 | 11.2 | 23.9 | 29.5 | 4.54 |
| 1/4 | 6-7 | 7.85 | 26.2 | 12.7 | 19.1 | 16.8 | 14.2 | 30.2 | 36.6 | 8.62 |
| 5/16 | 8 | 9.65 | 35.1 | 19.1 | 22.4 | 18.3 | 17.5 | 33.3 | 42.9 | 12.7 |
| 3/8 | 9-10 | 11.2 | 38.1 | 19.1 | 25.4 | 23.1 | 19.1 | 41.4 | 49.3 | 21.8 |
| 7/16 – 1/2 | 11-13 | 12.7 | 47.8 | 25.4 | 30.2 | 28.7 | 22.4 | 48.5 | 57.9 | 35.4 |
| 9/16 – 5/8 | 14-16 | 14.2 | 57.2 | 31.8 | 33.3 | 34 | 23.9 | 52.3 | 63.5 | 49.4 |
| 3/4 | 18-20 | 15.7 | 70 | 36.6 | 38.1 | 35.8 | 26.9 | 57 | 72 | 64 |
| 7/8 | 22 | 19.1 | 79 | 41.1 | 44.5 | 40.4 | 31.8 | 62 | 80.5 | 96 |
| 1 | 24-26 | 19.1 | 89 | 46 | 47.8 | 45.2 | 31.8 | 67 | 88 | 114 |
| 1-1/8 | 28-30 | 19.1 | 98.5 | 51 | 51 | 48.5 | 31.8 | 71.5 | 91 | 128 |
| 1-1/4 | 32-34 | 22.4 | 108 | 54 | 59.4 | 55.5 | 36.6 | 79.5 | 105 | 199 |
| 1-3/8 | 36 | 22.4 | 118 | 58.5 | 59.4 | 58.5 | 36.6 | 79.5 | 106 | 200 |
| 1-1/2 | 38 | 22.4 | 125 | 60.5 | 66.5 | 62 | 36.6 | 86.5 | 113 | 247 |
| 1-5/8 | 41-42 | 25.4 | 135 | 66.5 | 70 | 67.5 | 41.4 | 92 | 121 | 319 |
| 1-3/4 | 44-46 | 28.7 | 146 | 70 | 77.5 | 74.5 | 46 | 97 | 134 | 424 |
| 2 | 48-52 | 31.8 | 164 | 76 | 86 | 77 | 51 | 113 | 149 | 590 |
| 2-1/4 | 56-58 | 31.8 | 181 | 81 | 98.5 | 81 | 51 | 114 | 162 | 726 |
| 2-1/2 | 62-65 | 31.8 | 195 | 87.5 | 105 | 93.5 | 51 | 119 | 168 | 862 |
| 2-3/4 | 68-72 | 31.8 | 211 | 90.5 | 111 | 124 | 51 | 127 | 175 | 1043 |
| 3 | 75-78 | 38.1 | 233 | 98.5 | 121 | 119 | 60.5 | 149 | 194 | 1406 |
| 3-1/2 | 85-90 | 38.1 | 273 | 114 | 140 | 152 | 60.5 | 157 | 213 | 1814 |
