JIS 1168 Eye Bolt

JIS 1168 Eye Bolts are used for lifting machines, appliances, or any other objects which cannot be lifted by hand or by forklift truck. Size from M6 to M64.

Product Features:

Material: carbon steel
Standard: JIS 1168
Finish: galvanized

Product Parameters:

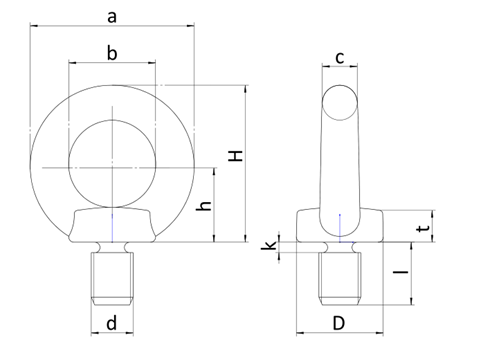

jis 1168 eye bolt 2

Size
(mm)
Working Load Limit Dimensions
(mm)
Weight Each
(kg)
kg KN a b c d D t h H I k
M6 60 0.588 26 16 5 6 13 4.9 13.5 26.5 12.5 1 0.015
M8 80 0.785 32.6 20 6.3 8 16 5 17 33.3 15 1.2 0.03
M10 150 1.47 41 25 8 10 20 7 21 41.5 18 1.5 0.06
M12 220 2.16 50 30 10 12 25 9 26 51 22 2 0.12
M14 330 3.23 60 35 12.5 14 30 11 30 60 27 2 0.2
M16 450 4.41 60 35 12.5 16 30 11 30 60 27 2 0.22
M18 540 5.29 72 40 16 18 35 13 35 71 30 2.5 0.37
M20 630 6.18 72 40 16 20 35 13 35 71 30 2.5 0.4
M22 790 7.74 81 45 18 22 40 15 40 80.5 35 2.5 0.57
M24 950 9.32 90 50 20 24 45 18 45 90 38 3 0.8
M27 1200 11.7 110 60 25 27 60 22 55 110 45 3 1.5
M30 1500 14.7 110 60 25 30 60 22 55 110 45 3.5 1.54
M33 1900 18.6 110 60 25 33 60 22 55 110 45 4 1.59
M36 2300 22.6 133 70 31.5 36 70 26 65 131.5 55 4 2.83
M39 2850 27.9 133 70 31.5 39 70 26 65 131.5 55 4 2.9
M42 3400 33.3 151 80 35.5 42 80 30 75 150.5 65 4.5 4.1
M45 3950 38.7 151 80 35.5 45 80 30 75 150.5 65 4.5 4.34
M48 4500 44.1 170 90 40 48 90 35 85 170 70 5 5.88
M52 5600 54.9 170 90 40 52 90 35 85 170 70 5 6.16
M56 6750 66.2 210 110 50 56 110 42 105 210 80 5 10.85
M64 9000 88.3 210 110 50 64 110 42 105 210 90 6 11.6
