HG-228 Turnbuckle with Jaw & Jaw

Home > Products > RIGGING HARDWARE > Turnbuckle > HG-228 Turnbuckle with Jaw & Jaw

Product Features:

Material: carbon steel
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Safety factor: MBL equals 5 x WLL
Finish: hot-dip galvanized

Product Parameters:

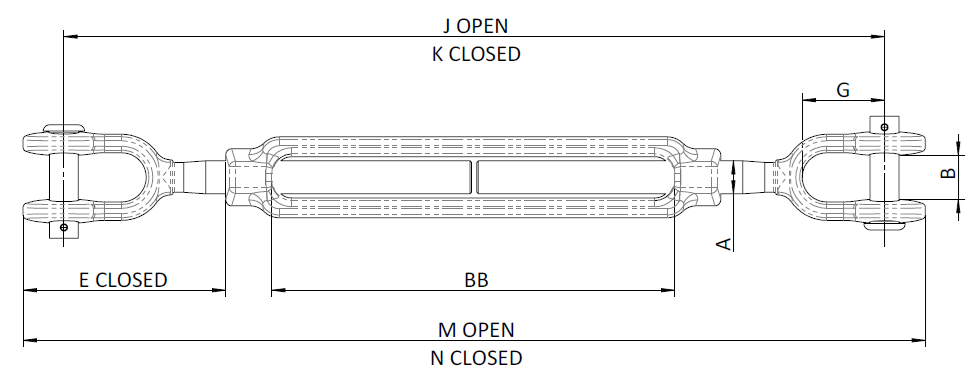

hg 228 turnbuckle with jaw & jaw 2

Thread Diameter & Take Up		Working Load Limit (t)	Dimensions (mm)									Weight Each (kg)
in	mm	Working Load Limit (t)	A	B	E closed	G	J open	K closed	M open	N closed	BB	Weight Each (kg)
1/4 × 4	6.35 × 102	0.23	6.35	11.4	42	16.1	284	183	309	208	103	0.17
5/16 × 4-1/2	7.94 × 114	0.36	7.94	12.7	51.2	22	332	218	359	244	116	0.25
3/8 × 6	9.53 × 152	0.54	9.53	13.5	53.5	21.5	413	260	445	292	155	0.39
1/2 × 6	12.7 × 152	1	12.7	16.3	81.8	27.1	474	321	512	359	153	0.83
1/2 × 9	12.7 × 229	1	12.7	16.3	81.3	27.1	633	405	671	443	238	1.04
1/2 × 12	12.7 × 305	1	12.7	16.3	81.3	27.1	786	481	824	519	314	1.23
5/8 × 6	15.9 × 152	1.59	15.9	20.1	99.1	33.5	501	349	554	402	153	1.46
5/8 × 9	15.9 × 229	1.59	15.9	20.1	98.8	33.5	662	434	715	487	239	1.79
5/8 × 12	15.9 × 305	1.59	15.9	20.1	98.8	33.5	815	510	868	563	315	2.08
3/4 × 6	19.1 × 152	2.36	19.1	24.6	120	38.5	536	383	601	449	156	2.18
3/4 × 9	19.1 × 229	2.36	19.1	24.6	119	38.5	698	470	764	535	244	2.65
3/4 × 12	19.1 × 305	2.36	19.1	24.6	119	38.5	851	546	916	612	320	3.05
3/4 × 18	19.1 × 457	2.36	19.1	24.6	120	38.5	1155	698	1221	764	471	3.83
7/8 × 12	22.2 × 305	3.27	22.2	29.5	140	44.8	880	575	956	651	309	4.25
7/8 × 18	22.2 × 457	3.27	22.2	29.5	140	44.8	1197	740	1272	815	473	5.34
1 × 6	25.4 × 152	4.54	25.4	34	155	52.1	605	453	690	538	157	4.74
1 × 12	25.4 × 305	4.54	25.4	34	155	52.1	910	605	995	690	309	6.25
1 × 18	25.4 × 457	4.54	25.4	34	155	52.1	1215	757	1300	843	462	7.77
1 × 24	25.4 × 610	4.54	25.4	34	154	52.1	1535	925	1620	1010	631	9.51
1-1/4 × 12	31.8 × 305	6.89	31.8	46.7	205	71.5	1000	695	1107	802	306	9.94
1-1/4 × 18	31.8 × 457	6.89	31.8	46.7	205	71.5	1305	848	1412	955	459	11.7
1-1/4 × 24	31.8 × 610	6.89	31.8	46.7	205	71.5	1624	1014	1731	1121	625	13.5
1-1/2 × 12	38.1 × 305	9.71	38.1	52.3	227	71.4	1035	731	1160	855	313	14.8
1-1/2 × 18	38.1 × 457	9.71	38.1	52.3	227	71.4	1340	883	1465	1008	456	17.2
1-1/2 × 24	38.1 × 610	9.71	38.1	52.3	227	71.4	1661	1051	1786	1176	633	19.7
1-3/4 × 18	44.5 × 457	12.7	44.5	66	238	85	1355	898	1503	1045	456	24.3
1-3/4 × 24	44.5 × 610	12.7	44.5	66	238	85	1660	1050	1807	1198	619	27.7
2 × 24	51 × 610	16.8	51	66.5	300	95	1769	1159	1949	1339	622	43.7
2-1/2 × 24	63.5 × 610	27.2	63.5	77.7	337	113	1853	1244	2087	1478	625	75.9
2-3/4 × 24	70 × 610	34	70	93.7	379	106	1899	1289	2172	1562	626	90.1
