HG-227 Turnbuckle with Jaw & Eye

HG-227 Turnbuckle with Jaw & Eye is a popular item among the rigging industries. The jaw of our galvanized steel turnbuckles is fastened with either a nut/bolt or pin/cotter pin assembly depending on the configuration and size. The turnbuckle eye is elongated to reduce stress on the eye and make it easier for shackles and other hardware to pass through. The body of the turnbuckle is a reverse thread on opposite ends to allow tightening/loosening by simply turning the body of the turnbuckle. HG-227 Turnbuckles with Jaw & Eye are available in sizes ranging from 1/4″ to 2-3/4″ to fit every project.

Contact Us

Product Features:

Material: carbon steel
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Safety factor: MBL equals 5 x WLL
Finish: hot-dip galvanized

Product Parameters:

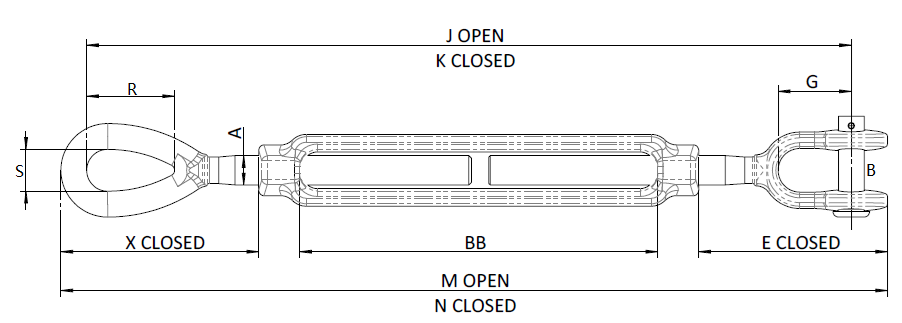

hg 227 turnbuckle with jaw & eye 2

Thread Diameter & Take Up Working Load Limit
(t)		 Dimensions
(mm)		 Weight Each
(kg)
in mm A B E
closed		 G J
open		 K
closed		 M
open		 N
closed		 R S X
closed		 BB
1/4 × 4 6.35 × 102 0.23 6.35 11.4 42 16.1 294 192 312 210 20.6 8.64 44.6 103 0.15
5/16 × 4-1/2 7.94 × 114 0.36 7.94 12.7 51.2 22 323 228 363 249 24.1 11.2 55.8 116 0.24
3/8 × 6 9.53 × 152 0.54 9.53 13.5 53.5 21.5 429 277 454 301 28.7 13.5 62.9 155 0.36
1/2 × 6 12.7 × 152 1 12.7 16.3 81.8 27.1 490 338 520 368 35.8 18 90.4 153 0.8
1/2 × 9 12.7 × 229 1 12.7 16.3 81.3 27.1 650 421 680 451 35.8 18 89.9 238 1.02
1/2 × 12 12.7 × 305 1 12.7 16.3 81.3 27.1 802 497 832 528 35.8 18 89.9 314 1.21
5/8 × 6 15.9 × 152 1.59 15.9 20.1 99.1 33.5 527 374 566 413 45.7 22.4 110 153 1.35
5/8 × 9 15.9 × 229 1.59 15.9 20.1 98.8 33.5 688 459 727 498 45.7 22.4 110 239 1.69
5/8 × 12 15.9 × 305 1.59 15.9 20.1 98.8 33.5 840 535 879 574 45.7 22.4 110 315 1.97
3/4 × 6 19.1 × 152 2.36 19.1 24.6 120 38.5 563 411 612 459 53.1 25.4 130 156 2.05
3/4 × 9 19.1 × 229 2.36 19.1 24.6 119 38.5 726 497 774 546 53.1 25.4 129 244 2.52
3/4 × 12 19.1 × 305 2.36 19.1 24.6 119 38.5 878 573 927 622 53.1 25.4 129 320 2.91
3/4 × 18 19.1 × 457 2.36 19.1 24.6 120 38.5 1183 726 1232 774 53.1 25.4 130 471 3.69
7/8 × 12 22.2 × 305 3.27 22.2 29.5 140 44.8 906 601 963 658 60.5 31.8 147 309 4.13
7/8 × 18 22.2 × 457 3.27 22.2 29.5 140 44.8 1223 766 1280 822 60.5 31.8 147 473 5.28
1 × 6 25.4 × 152 4.54 25.4 34 155 52.1 636 483 701 548 76.2 36.3 165 157 4.55
1 × 12 25.4 × 305 4.54 25.4 34 155 52.1 941 636 1006 701 76.2 36.3 165 309 6.06
1 × 18 25.4 × 457 4.54 25.4 34 155 52.1 1245 788 1310 853 76.2 36.3 165 462 7.58
1 × 24 25.4 × 610 4.54 25.4 34 154 52.1 1565 956 1630 1021 76.2 36.3 164 631 9.33
1-1/4 × 12 31.8 × 305 6.89 31.8 46.7 205 71.5 1035 730 1117 812 91.2 46.2 216 306 9.48
1-1/4 × 18 31.8 × 457 6.89 31.8 46.7 205 71.5 1340 883 1422 965 91.2 46.2 216 459 11.3
1-1/4 × 24 31.8 × 610 6.89 31.8 46.7 205 71.5 1659 1050 1741 1131 91.2 46.2 216 625 13.1
1-1/2 × 12 38.1 × 305 9.71 38.1 52.3 227 71.4 1080 775 1174 869 104 53.8 240 313 13.9
1-1/2 × 18 38.1 × 457 9.71 38.1 52.3 227 71.4 1384 927 1479 1021 104 53.8 240 456 16.3
1-1/2 × 24 38.1 × 610 9.71 38.1 52.3 227 71.4 1705 1095 1799 1189 104 53.8 240 633 18.8
1-3/4 × 18 44.5 × 457 12.7 44.5 66 238 85 1406 949 1518 1061 118 60.5 253 456 23.6
1-3/4 × 24 44.5 × 610 12.7 44.5 66 238 85 1711 1101 1823 1213 118 60.5 253 619 27.1
2 × 24 51 × 610 16.8 51 66.5 300 95 1846 1236 1980 1370 148 68.3 331 622 40.8
2-1/2 × 24 63.5 × 610 27.2 63.5 77.7 337 113 1932 1323 2100 1490 165 79.2 350 625 71.7
2-3/4 × 24 70 × 610 34 70 93.7 379 106 1982 1373 2176 1566 178 82.6 383 626 84.6
