Material: carbon steel
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Safety factor: MBL equals 5 x WLL
Finish: hot-dip galvanized

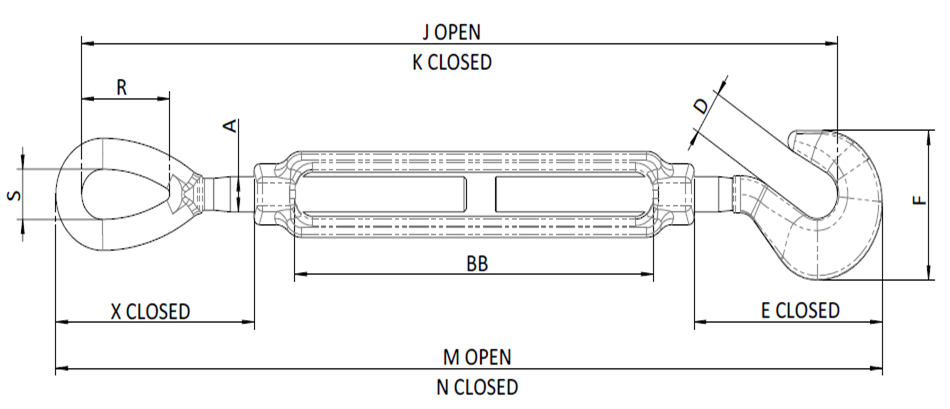

| Thread Diameter & Take Up | Working Load Limit (t) |
Dimensions (mm) |
Weight Each (kg) |
||||||||||||
| in | mm | A | D | E closed |
F | J open |
K closed |
M open |
N closed |
R | S | X closed |
BB | ||
| 1/4 × 4 | 6.35 × 102 | 0.18 | 6.35 | 11.2 | 42.3 | 32.3 | 296 | 195 | 312 | 211 | 20.6 | 8.64 | 44.6 | 103 | 0.14 |
| 5/16 × 4-1/2 | 7.94 × 114 | 0.32 | 7.94 | 12.7 | 50.7 | 38.1 | 343 | 229 | 363 | 248 | 24.1 | 11.2 | 55.8 | 116 | 0.23 |
| 3/8 × 6 | 9.53 × 152 | 0.45 | 9.53 | 14.2 | 57.8 | 44.7 | 434 | 282 | 458 | 306 | 28.7 | 13.5 | 62.9 | 155 | 0.36 |
| 1/2 × 6 | 12.7 × 152 | 0.68 | 12.7 | 16.5 | 89.7 | 57.9 | 497 | 345 | 528 | 376 | 35.8 | 18 | 90.4 | 153 | 0.82 |
| 1/2 × 12 | 12.7 × 305 | 0.68 | 12.7 | 16.5 | 89.2 | 57.9 | 809 | 504 | 840 | 535 | 35.8 | 18 | 89.9 | 314 | 1.22 |
| 5/8 × 6 | 15.9 × 152 | 1.02 | 15.9 | 22.9 | 108 | 71.4 | 536 | 384 | 574 | 422 | 45.7 | 22.4 | 110 | 153 | 1.35 |
| 5/8 × 12 | 15.9 × 305 | 1.02 | 15.9 | 22.9 | 107 | 71.4 | 850 | 545 | 888 | 583 | 45.7 | 22.4 | 110 | 315 | 1.97 |
| 3/4 × 6 | 19.1 × 152 | 1.36 | 19.1 | 24.9 | 129 | 84.6 | 574 | 422 | 621 | 469 | 53.1 | 25.4 | 130 | 156 | 1.91 |
| 3/4 × 12 | 19.1 × 305 | 1.36 | 19.1 | 24.9 | 128 | 84.6 | 889 | 584 | 936 | 631 | 53.1 | 25.4 | 129 | 320 | 2.96 |
| 3/4 × 18 | 19.1 × 457 | 1.36 | 19.1 | 24.9 | 129 | 84.6 | 1194 | 737 | 1241 | 784 | 53.1 | 25.4 | 130 | 471 | 3.74 |
| 7/8 × 12 | 22.2 × 305 | 1.81 | 22.2 | 28.7 | 148 | 96 | 917 | 612 | 971 | 666 | 60.5 | 31.8 | 147 | 309 | 4.24 |
| 1 × 12 | 25.4 × 305 | 2.27 | 25.4 | 31.8 | 167 | 108 | 956 | 652 | 1018 | 713 | 76.2 | 36.3 | 165 | 309 | 6.29 |
