G43 High Test Chain

G43 High Test Chain is a sort of welded link chain meeting the requirements of ASTM and NACM. It is a medium carbon steel chain with good wear resistance ideal for most tie-down applications. G43 High Test Chain is also suitable for container securement, logging, towing, and marine industry applications. But the chain is not used for lifting purposes. The available finishes of the chain are self-colored, shot blast, galvanized, powder coated and hot galvanized. G43 High Test Chain is available in a wide assortment of packaged configurations, such as drums, pails, reels, hanks.

Contact Us

Product Features:

Material: carbon steel
Standard: NACM 1996
Finish: self-colored, galvanized

Product Parameters:

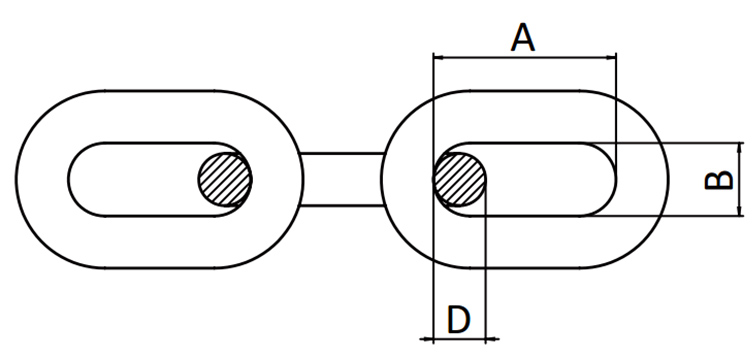

g43 high test chain 2

Nominal Size Inside Length
(MAX.)		 Inside Width
(MIN.)		 Working Load Limit
(MAX.)		 Proof Load
(MIN.)		 Breaking Load
(MIN.)
in mm in mm in mm kg Lb kN Lb kN Lb
1/4 7 1.24 31.5 0.38 9.8 1180 2600 17.3 3900 34.6 7800
5/16 8.7 1.29 32.8 0.44 11.2 1770 3900 26 5850 52 11700
3/8 10 1.38 35 0.55 14 2450 5400 36 8100 72 16200
7/16 11.9 1.64 41.6 0.65 16.6 3270 7200 48 10800 96 21600
1/2 13 1.79 45.5 0.72 18.2 4170 9200 61.3 13800 122.6 27600
5/8 16 2.2 56 0.79 20 5910 13000 86.5 19500 173 39000
3/4 20 2.76 70 0.98 25 9180 20200 134.7 30300 269.4 60600
7/8 22 3.03 77 1.08 27.5 11140 24500 163.3 36750 326.6 73500
