G 416 Open Spelter Socket

Home > Products > WIRE ROPE ACCESSORIES > Sockets > G-416 Open Spelter Socket

Product Features:

Material: alloy steel
Finish: hot dipped galvanized

Product Parameters:

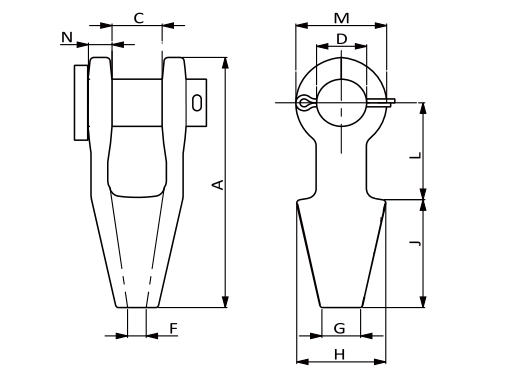

g 416 open spelter socket 2

Rope Diameter		Ultimate Load (t)	Dimensions (mm)										Weight Each (kg)
in	mm	Ultimate Load (t)	A	C	D	F	G	H	J	L	M	N	Weight Each (kg)
5/16 – 3/8	8-10	12	123	20.6	20.6	12.7	20.6	42.9	57	44.5	38.1	11.2	0.59
7/16 – 1/2	11-13	20	141	25.4	25.4	14.2	23.9	47.8	63.5	51	47.8	12.7	1.02
9/16 – 5/8	14-16	27	171	31.8	30.2	17.5	28.7	57	76	63.5	57	14.2	1.63
3/4	18	43	202	38.1	35.1	20.6	31.8	66.5	89	76	66.5	15.7	2.64
7/8	20-22	55	235	44.5	41.4	23.9	38.1	82.5	102	89	79.5	20.3	4.38
1	24-26	78	268	51	51	28.7	44.5	95.5	114	102	95.5	22.4	7.03
1-1/8	28-30	92	300	57	57	31.8	51	105	127	117	105	25.4	9.75
1-1/4 – 1-3/8	32-35	136	335	63.5	63.5	38.1	57	121	140	127	121	28.7	14.1
1-1/2	38	170	384	76	70	41.4	70	133	152	152	137	30.2	21.4
1-5/8	40-42	188	413	76	76	44.5	76	140	165	165	146	33.3	24.9
1-3/4 – 1-7/8	44-48	268	464	89	89	51	79.5	162	191	178	165	39.6	37.2
2 – 2-1/8	50-54	291	546	102	95.5	57	95.5	187	216	229	178	46	59
2-1/4 – 2-3/8	56-60	360	597	114	108	63.5	102	210	229	254	197	54	76
2-1/2 – 2-5/8	64-67	424	648	127	121	73	114	235	248	274	216	60.5	114
2-3/4 – 2-7/8	70-73	511	692	133	127	79	124	267	279	279	229	73	143
3 – 3-1/8	75-80	563	737	146	133	86	133	282	305	287	241	76	172
3-1/4 – 3-3/8	82-86	722	784	159	140	92	146	302	330	300	254	79	197
3-01/2 – 3-5/8	88-92	779	845	171	152	98.5	165	314	356	318	274	82.5	255
3-3/4 – 4	94-102	875	921	191	178	108	184	346	381	343	318	89	355
