G-414 Extra Heavy Wire Rope Thimble

G-414 Extra Heavy Wire Rope Thimble is used to protect steel wire rope, fiber rope, or synthetic rope. It can be used in combination with the above-mentioned types of ropes. G-414 Extra Heavy Wire Rope Thimble can effectively prevent the deformation of the steel wire rope (rope) and prolong its service life. Size from 1/4’’ to 2-1/4’’.

Product Features:

Material: carbon steel
Finish: galvanized

Product Parameters:

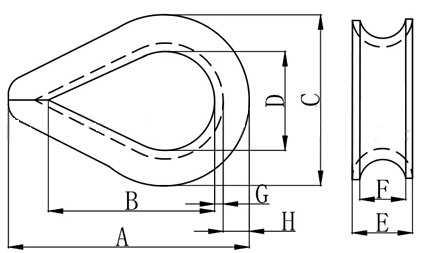

g 414 extra heavy wire rope thimble 2

Rope Diameter Dimensions
(mm)
Weight per 100 pcs
(kg)
in mm A B C D E F G H
1/4 6-7 55.5 41.4 38.1 22.4 11.2 7.1 1.5 5.85 2.95
5/16 8 63.5 47.8 46 26.9 14 86.5 2.05 7.1 5.35
3/8 9-10 73 54 54 28.7 16.8 10.4 2.8 8.65 9.8
7/16 11-12 82.5 60.5 60.5 31.8 18.8 11.9 3.3 9.65 15.7
1/2  –  9/16 13-15 92 70 70 38.1 23.4 13.5 3.55 10.4 23.1
5/8 16 108 82.5 79.5 44.5 26.2 16.8 4.05 12.7 34.3
3/4 18-20 127 95.5 96.5 51 33 19.8 5.6 16.8 72
7/8 22 140 108 108 57 37.3 23.9 5.6 19.1 81
1 24-26 156 114 125 63.5 44.5 26.9 6.35 22.4 142
1-1/8  –  1-1/4 28-32 178 130 149 73 47.8 33.3 6.35 28.7 181
1-1/4  –  1-3/8 32-35 230 165 173 89 57.2 36.6 9.65 28.7 402
1-3/8  –  1-1/2 35-38 229 159 181 89 66.5 39.6 12.7 28.7 587
1-5/8 40 286 203 207 102 76.2 43.7 12.7 35.1 771
1-3/4 44 310 229 216 114 77.7 46.7 12.7 33.3 805
1-7/8  –  2 48-52 384 305 264 152 85.9 53 12.7 38.1 1259
2-1/4 56 435 356 302 178 98.6 60.5 16 41.4 1792
