Material: forged steel, quenched and tempered
Safety factor: MBL equals 5 x WLL
Finish: galvanized

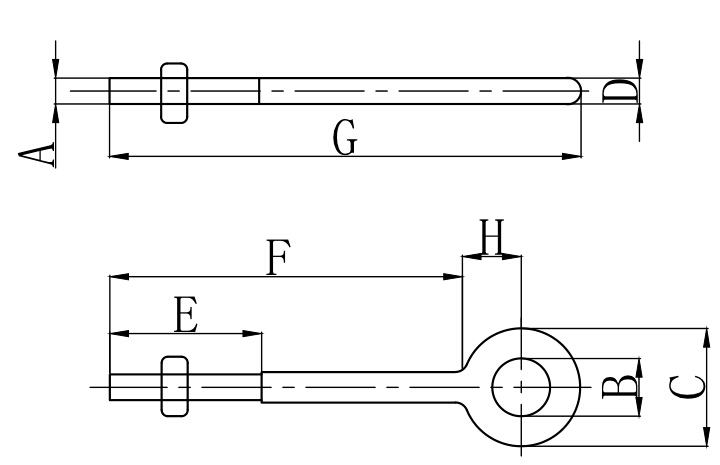

| Shank Diameter & Length | Working Load Limit (t) |
Dimensions (mm) |
Weight Per 100 pcs (kg) |
||||||||
| in | mm | A | B | C | D | E | F | G | H | ||
| 3/8 × 4-1/2 | 9.53×114 | 0.7 | 9.65 | 19.1 | 38.1 | 9.65 | 63.5 | 114 | 155 | 22.4 | 13.4 |
| 1/2 × 3-1/4 | 12.7×82.5 | 1.18 | 12.7 | 25.4 | 51 | 12.7 | 38.1 | 82.5 | 137 | 28.4 | 22.8 |
| 1/2 × 6 | 12.7×152 | 1.18 | 12.7 | 25.4 | 51 | 12.7 | 76 | 152 | 206 | 28.4 | 30 |
| 1/2 × 8 | 12.7×203 | 1.18 | 12.7 | 25.4 | 51 | 12.7 | 76 | 203 | 257 | 28.4 | 37 |
| 1/2 × 10 | 12.7×254 | 1.18 | 12.7 | 25.4 | 51 | 12.7 | 76 | 254 | 308 | 28.4 | 40 |
| 1/2 × 12 | 12.7×305 | 1.18 | 12.7 | 25.4 | 51 | 12.7 | 76 | 305 | 359 | 28.4 | 52 |
| 5/8 × 4 | 15.9×102 | 2.35 | 15.7 | 31.8 | 63.5 | 15.7 | 51 | 102 | 170 | 36.6 | 47 |
| 5/8 × 6 | 15.9×152 | 2.35 | 15.7 | 31.8 | 63.5 | 15.7 | 76 | 152 | 221 | 36.6 | 54 |
| 5/8 × 8 | 15.9×203 | 2.35 | 15.7 | 31.8 | 63.5 | 15.7 | 76 | 203 | 272 | 36.6 | 61 |
| 5/8 × 10 | 15.9×254 | 2.35 | 15.7 | 31.8 | 63.5 | 15.7 | 76 | 254 | 322 | 36.6 | 70 |
| 5/8 × 12 | 15.9×305 | 2.35 | 15.7 | 31.8 | 63.5 | 15.7 | 102 | 305 | 373 | 36.6 | 76 |
| 3/4 × 4-1/2 | 19.1×114 | 3.26 | 19.1 | 38.1 | 76 | 19.1 | 51 | 114 | 195 | 42.9 | 76 |
| 3/4 × 6 | 19.1×152 | 3.26 | 19.1 | 38.1 | 76 | 19.1 | 76 | 152 | 233 | 42.9 | 84 |
| 3/4 × 8 | 19.1×203 | 3.26 | 19.1 | 38.1 | 76 | 19.1 | 76 | 203 | 284 | 42.9 | 94 |
| 3/4 × 10 | 19.1×254 | 3.26 | 19.1 | 38.1 | 76 | 19.1 | 76 | 254 | 335 | 42.9 | 107 |
| 3/4 × 12 | 19.1×305 | 3.26 | 19.1 | 38.1 | 76 | 19.1 | 102 | 305 | 386 | 42.9 | 117 |
| 3/4 × 15 | 19.1×381 | 3.26 | 19.1 | 38.1 | 76 | 19.1 | 127 | 381 | 462 | 42.9 | 135 |
| 7/8 × 5 | 22.2×127 | 4.8 | 22.4 | 44.5 | 89 | 22.4 | 63.5 | 127 | 222 | 51 | 122 |
| 7/8 × 8 | 22.2×203 | 4.8 | 22.4 | 44.5 | 89 | 22.4 | 102 | 203 | 298 | 51 | 140 |
| 7/8 × 12 | 22.2×305 | 4.8 | 22.4 | 44.5 | 89 | 22.4 | 102 | 305 | 400 | 51 | 181 |
| 1 × 6 | 25.4×152 | 6.03 | 25.4 | 51 | 102 | 25.4 | 76 | 125 | 262 | 58.5 | 191 |
| 1 × 6 | 25.4×229 | 6.03 | 25.4 | 51 | 102 | 25.4 | 102 | 229 | 338 | 58.5 | 213 |
| 1 × 6 | 25.4×305 | 6.03 | 25.4 | 51 | 102 | 25.4 | 102 | 305 | 414 | 58.5 | 245 |
| 1 × 6 | 25.4×457 | 6.03 | 25.4 | 51 | 102 | 25.4 | 178 | 457 | 567 | 58.5 | 295 |
| 1-1/4 × 8 | 31.8×203 | 9.52 | 31.8 | 63.5 | 127 | 31.8 | 102 | 203 | 340 | 73 | 340 |
| 1-1/4 × 12 | 31.8×305 | 9.52 | 31.8 | 63.5 | 127 | 31.8 | 102 | 305 | 441 | 73 | 408 |
| 1-1/4 × 20 | 31.8×508 | 9.52 | 31.8 | 63.5 | 127 | 31.8 | 152 | 508 | 645 | 73 | 549 |
