G 2130 Bow Shackle With Safety Bolt

Home > Products > RIGGING HARDWARE > Shackles > G-2130 Bow Shackle with Safety Bolt

Product Features:

G-2130 Bow Shackle with Safety bolt
Size: 3/16″ – 4″
Material: drop forged high tensile steel, quenched and tempered
Safety factor: MBL equals 6 x WLL
Finish: hot dipped galvanized

Product Parameters:

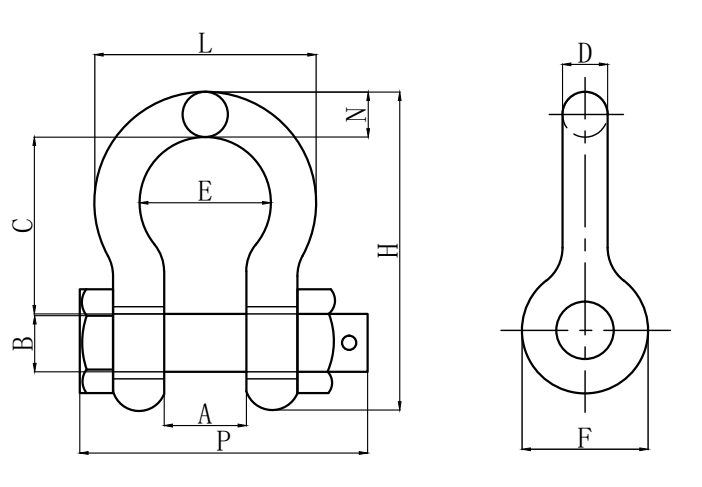

g 2130 bow shackle with safety bolt 2

Size		Working Load Limit (t)	Dimensions (mm)										Weight Each (kg)
in	mm	Working Load Limit (t)	A	B	C	D	E	F	H	L	N	P	Weight Each (kg)
3/16	5	0.3	9.65	6.35	22.4	4.85	15.2	14.2	37.3	24.9	4.85	32.8	0.03
1/4	6	0.5	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	39.6	0.05
5/16	8	0.75	13.5	9.65	31	7.85	21.3	19.1	53	37.3	7.85	46.2	0.1
3/8	10	1	16.8	11.2	36.6	9.65	26.2	23.1	63	45.2	9.65	55.1	0.15
7/16	11	1.5	19.1	12.7	42.9	11.2	29.5	26.9	74	51.5	11.2	63.8	0.22
1/2	13	2	20.6	16	47.8	12.7	33.3	30.2	83.5	58.5	12.7	71.1	0.36
5/8	16	3.25	26.9	19.1	60.5	16	42.9	38.1	106	74.5	17.5	90.4	0.62
3/4	19	4.75	31.8	22.4	71.5	19.1	51	46	126	89	20.6	105	1.23
7/8	22	6.5	36.6	25.4	84	22.4	58	53	148	102	24.6	122	1.79
1	25	8.5	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	137	2.28
1-1/8	29	9.5	46	31.8	108	28.7	74	68.5	190	131	31.8	150	3.75
1-1/4	32	12	51.5	35.1	119	31.8	82.5	76	210	146	35.1	170	5.31
1-3/8	35	13.5	57	38.1	133	35.1	92	84	233	162	38.1	183	7.18
1-1/2	38	17	60.5	41.4	146	38.1	98.5	92	254	175	41.1	196	8.62
1-3/4	45	25	73	51	178	44.5	127	106	313	225	57	246	15.4
2	51	35	82.5	57	197	51	146	122	348	253	61	275	23.7
2-1/2	63	55	105	70	267	66.5	184	145	453	327	79.5	345	44.6
3	76	85	127	82.5	330	76	200	165	546	365	92	384	70
3-1/2	89	120	133	95.5	372	92	229	203	626	419	105	432	120
4	102	150	140	108	368	104	254	229	653	468	116	451	153
