G 209 Bow Shackle With Screw Pin

Home > Products > RIGGING HARDWARE > Shackles > G-209 Bow Shackle with Screw Pin

Product Features:

Material: drop forged high tensile steel, quenched and tempered
Safety factor: MBL equals 6 x WLL
Finish: hot dipped galvanized

Product Parameters:

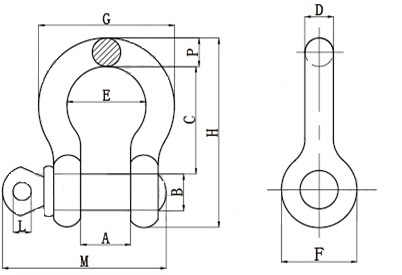

g 209 bow shackle with screw pin 2

Size		Working Load Limit (t)	Dimensions (mm)											Weight Each (kg)
in	mm	Working Load Limit (t)	A	B	C	D	E	F	G	H	L	M	P	Weight Each (kg)
3/16	5	0.3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
1/4	6	0.5	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
5/16	8	0.75	13.5	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
3/8	10	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
7/16	11	1.5	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
1/2	13	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
5/8	16	3.25	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
3/4	19	4.75	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
7/8	22	6.5	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
1	25	8.5	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26	2.28
1-1/8	29	9.5	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
1-1/4	32	12	51.5	35.1	119	32.8	82.5	76	146	210	17.5	156	35.1	4.31
1-3/8	35	13.5	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
1-1/2	38	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
1-3/4	45	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
2	51	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
2-1/2	63	55	105	70	267	69	184	145	327	453	35.1	330	79.5	38.9
