European Type Large Bow Shackle

European Type Large Bow Shackle body and the pin are made of steel with the same diameter. The shackle is made of high-quality carbon steel, which meets international quality standards. Our European Type Large Bow Shackles are available in standard and customized sizes.

Product Features:

Material: carbon steel
Safety factor: MBL equals 4 x WLL
Finish: galvanized

Product Parameters:

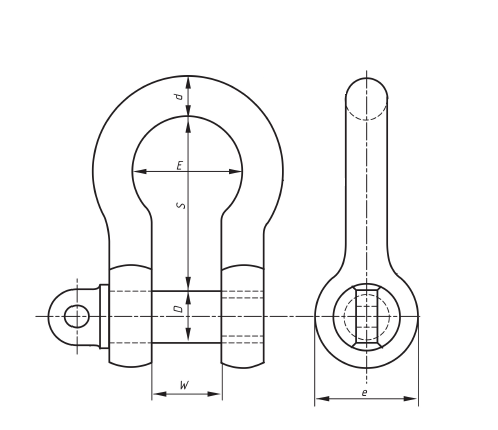

european type large bow shackle 2

Size Working Load Limit
(kg)
Dimensions
(mm)
Weight Per 100 pcs
(kg)
d D W S E e
M5 80 5 5 10 19 16 11 2.2
M6 100 6 6 13 25 20 14 4
M8 200 8 8 16 32 24 18 8
M10 320 10 10 19 38 32 20 15
M12 520 12 12 25 51 38 26 30
M16 800 16 16 32 64 56 33 58
M20 1100 20 20 38 76 66 40 92
M22 1500 22 22 44 89 74 50 149
M25 2100 25 25 51 100 80 57 230
M28 3000 28 28 57 115 94 68 357
M32 3500 32 32 64 127 104 73 495
M38 5000 38 38 76 152 126 85 805
M45 7000 45 45 90 180 150 96 1438
M50 8000 50 50 102 200 156 108 2012
