DIN 764 Chain

Home > Products > CHAINS > DIN Standard Link Chain > DIN 764 Chain

Product Features:

Material: carbon steel
Standard: DIN 764
Finish: galvanized

Product Parameter:

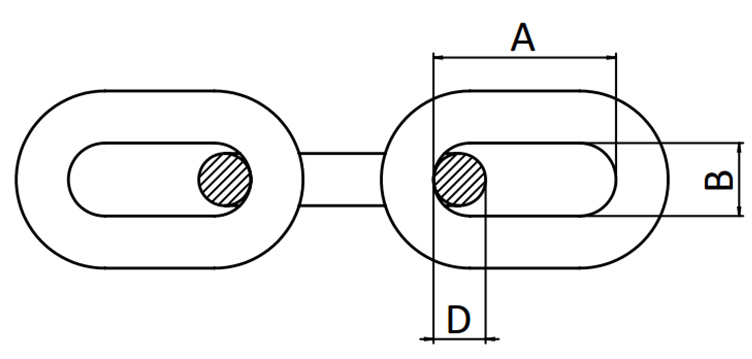

din 764 chain 2

Size		Inside Length			Inside Width	Outside Width	Length per 11 links			Proof Load (kg)	Breaking Load (kN)	Weight per 100 meters (kg)
mm	±mm	mm	+mm	-mm	mm	mm	mm	+mm	-mm	Proof Load (kg)	Breaking Load (kN)	Weight per 100 meters (kg)
4	0.2	32	0.3	0.2	5	14	176	1.6	0.9	400	7	31.3
5	0.2	34	0.4	0.2	7	18.2	198	1.8	1	680	11.8	51.4
6	0.2	35	0.5	0.2	8	21.5	231	2	1.1	850	16.5	74
8	0.2	38.5	0.5	0.3	11	29	308	2.2	1.2	1680	32	131.5
10	0.3	42	0.6	0.3	14	36	385	2.7	1.5	2630	50	200
12	0.3	49	0.6	0.3	16	41	462	3.2	1.8	3680	70	298
13	0.4	52	0.7	0.4	18	47	495	3.5	2	4200	80	350
14	0.45	56	0.75	0.45	20	48	539	3.8	2	4830	92	406
16	0.5	59	0.9	0.5	22	58	616	4.3	2.5	6700	125	520
18	0.8	65	1	0.5	24	65	693	4.7	2.8	8400	160	650
20	1	72	1.1	0.6	27	72	770	5.4	3.2	10000	200	820
23	1.2	78	1.3	0.7	31	83	880	6.2	3.5	13000	250	1100
26	1.3	82	1.5	0.8	35	94	1001	7	4	16000	320	1400
28	1.4	100	1.6	0.9	36	101	1078	8	4.5	18000	360	1650
30	1.5	113	1.7	0.9	39	108	1155	8.5	4.7	20250	390	1900
33	1.7	119	1.9	1	43	119	1265	9.5	5	25000	425	2250
