Material: carbon steel
Standard: DIN 763
Finish: galvanized

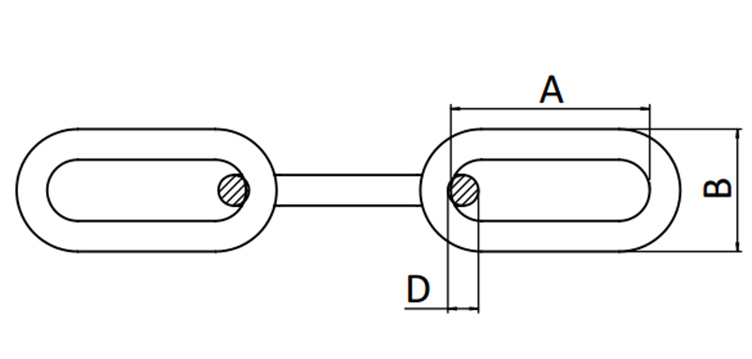

| Size | Inside Length | Outside Width | Working Load (kg) |
Test Load (kN) |
Breaking Load (kN) |
Weight per 100 meters (kg) |
|||
| mm | ±mm | mm | ±mm | mm | ±mm | ||||
| 2 | 0.5 | 22 | 1 | 8 | 0.4 | 25 | 0.8 | 1.25 | 6 |
| 2.5 | 0.5 | 24 | 1.1 | 10 | 0.5 | 40 | 0.8 | 2 | 10 |
| 3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1.05 | 3.2 | 15 |
| 3.5 | 0.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1.54 | 3.85 | 20 |
| 4 | 0.5 | 32 | 1.5 | 16 | 0.8 | 100 | 2 | 6 | 27 |
| 4.5 | 0.5 | 34 | 1.7 | 18 | 0.9 | 128 | 2.5 | 6.3 | 35 |
| 5 | 0.5 | 35 | 1.8 | 20 | 1 | 160 | 3.15 | 10 | 43 |
| 5.5 | 0.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 3.8 | 9.5 | 52 |
| 6 | 0.5 | 42 | 2 | 24 | 1.2 | 224 | 4.5 | 14 | 63 |
| 7 | 0.5 | 49 | 2.5 | 28 | 1.4 | 300 | 6 | 18 | 86 |
| 8 | 0.5 | 52 | 2.5 | 32 | 1.6 | 400 | 8 | 25 | 110 |
| 8.5 | 0.5 | 56 | 2.8 | 34 | 1.7 | 460 | 9 | 22.5 | 125 |
| 9 | 1 | 59 | 3 | 36 | 1.8 | 530 | 10.5 | 32 | 141 |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12.5 | 40 | 175 |
| 11 | 1 | 72 | 3.4 | 44 | 2 | 790 | 15.8 | 47.5 | 211 |
| 12 | 1 | 78 | 3.6 | 48 | 2.3 | 940 | 18.8 | 56.5 | 255 |
| 13 | 1 | 82 | 4 | 52 | 2.5 | 1000 | 21.2 | 63 | 295 |
| 16 | 1 | 100 | 5 | 64 | 3.2 | 1600 | 33 | 100 | 445 |
| 18 | 1 | 113 | 5.2 | 70 | 3.2 | 2120 | 42.3 | 127 | 565 |
| 19 | 1 | 119 | 5.6 | 72 | 3.4 | 2370 | 47.3 | 142 | 625 |
| 20 | 1 | 120 | 6 | 75 | 3.8 | 2500 | 50 | 160 | 700 |
| 22 | 1 | 127 | 6 | 82 | 4 | 3170 | 63.3 | 190 | 855 |
| 25 | 1 | 140 | 6.6 | 85 | 4.2 | 4090 | 81.7 | 245 | 1090 |
| 28 | 1 | 152 | 7 | 96 | 4.7 | 6000 | 120 | 300 | 1390 |
| 30 | 1 | 162 | 7.4 | 102 | 4.9 | 7000 | 140 | 350 | 1597 |
| 32 | 1 | 171 | 7.8 | 108 | 5.2 | 8000 | 160 | 400 | 1820 |
