DIN 6899B Wire Rope Thimble

DIN 6899B Wire Rope Thimble is used to protect steel wire rope, fiber rope, or synthetic rope. It can be used in combination with the above-mentioned types of ropes. DIN 6899B Wire Rope Thimble is good for light-duty rigging applications. DIN 6899B Wire Rope Thimble can effectively prevent the deformation of the steel wire rope (rope) and prolong its service life. Size from 2.5mm to 42mm.

Product Features:

Material: carbon steel
Standard: DIN 6899B
Finish: galvanized

Product Parameters:

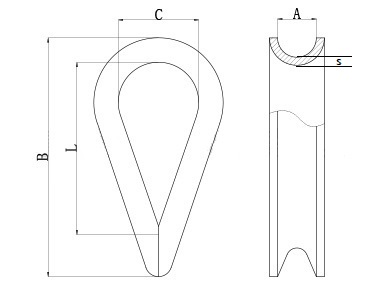

din 6899b wire rope thimble 2

Rope Diameter
(mm)
Dimensions
(mm)
Weight per 100 pcs
(kg)
A B C L s
2.5 3 22 12 19 1.6 0.6
3.5 4 26 13 21 1.6 0.8
4 5 32 14 23 1.9 1
5 6 38 16 25 2.4 2
6 7 44 18 28 2.4 2
7 8 51 20 32 2.8 2.7
9 10 57 24 38 3.1 4.1
11 12 64 28 45 3.3 6.9
13 13 70 30 48 3.3 7.2
13 14 76 32 51 3.7 10.2
15 16 83 36 58 3.8 16.4
16 17 89 38 61 4.7 19
17 18 95 40 64 4.7 20.3
18 20 102 45 72 5.7 27.3
20 22 114 50 80 5.7 30.8
22 24 127 56 90 6.5 44.8
24 26 140 62 99 6.8 59.2
26 28 152 70 112 8 72
28 30 165 75 120 8 104
30 32 178 80 128 8 115
32 34 203 95 152 8.5 153
34 36 216 100 160 8.5 176
36 38 229 110 176 8.5 176
38 40 241 115 184 10.5 292
40 42 254 120 192 10.5 320
42 45 305 150 240 10.5 364
