Material: carbon steel
Safety factor: MBL equals 5 x WLL
Standard: DIN 1478
Finish: hot-dip galvanized

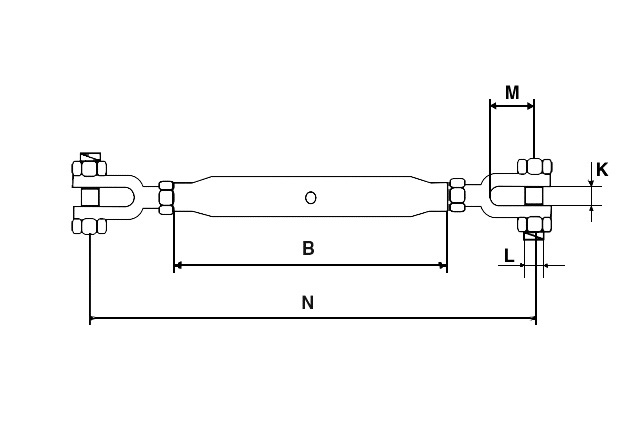

| Size | Working Load Limit (t) |
Dimensions (mm) |
Weight Each (kg) |
||||
| B | N | L | M | K | |||
| M6 | 0.2 | 100 | 175 – 255 | 5 | 19 | 7 | 0.16 |
| M8 | 0.32 | 108 | 199 – 282 | 6 | 25 | 9 | 0.27 |
| M10 | 0.5 | 125 | 222 – 320 | 8 | 26 | 10.5 | 0.45 |
| M12 | 0.7 | 195 | 320 – 479 | 10 | 32 | 13 | 0.85 |
| M16 | 1.2 | 230 | 388 – 572 | 12 | 39 | 18 | 1.57 |
| M20 | 1.5 | 270 | 454 – 672 | 16 | 46 | 20 | 2.67 |
| M22 | 2.2 | 295 | 490 – 730 | 20 | 55 | 25 | 3.68 |
| M24 | 3.2 | 325 | 558 – 819 | 22 | 63 | 30 | 5.3 |
| M33 | 4.8 | 370 | 681 – 977 | 30 | 85 | 38 | 12 |
| M39 | 6 | 400 | 710 – 1017 | 33 | 86 | 45 | 14.2 |
| M45 | 8.5 | 407 | 810 – 1170 | 39 | 86 | 48 | 20.8 |
| M50 | 10 | 407 | 855 – 1215 | 45 | 98 | 50 | 24 |
